Description

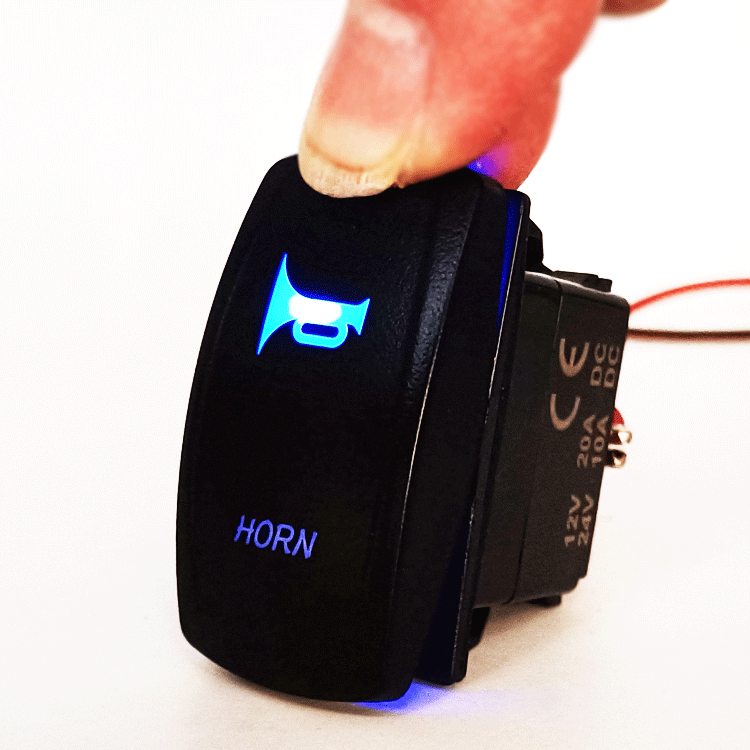

Horn Rocker Switch -3P (ON)-OFF Momentary
3P (ON)-OFF Momentary Rocker Switch Horn Symbol is a single throw momentary switch (returns to the center position by the spring) used to control your 12-volt Air Horn.
Switch Feature:
- Night readability without hassle
- Dual LED Light, top blacklight, bottom indicator light
- Laser engraving technology with permanently illuminated patterns
- 5 illuminated colors: Blue, Green, Red, White, Amber
- Same size as the Carling and ARB switches
Horn Rocker Switch Electrical Specs:
- Voltage Rating: 12V 20A , 24V 10A DC
- Circuit: SPST
- Position: (ON)-OFF
- Water Protection: IP65
- Terminal Poles: 3P
- Terminal Style: 1/4”(6.3mm)
- Life:10000 codes circuit
- Operating Temperature: -40°C to+85° C
- Terminals: Brass or copper/silver plate
- LED Life: 50.000 hours
- Certification: UL, CE, Rohs
- Size of Mounting Hole: 21.2*37.2mm
3P ( ON)-OFF Horn Rocker Switch Wiring Diagram:
This dual lamp on-off rocker switch has 3 terminals on the back. The wiring diagram is as follows:
We also can etch the wiring diagram on the switch if you need it, please get in touch with us for more details.
What are the advantages of our rocker switch?
- Material, we never use second-hand material, All our switch material is PA66 nylon flame resistance and Eco-friendly ABS plastic.
- Multiple protection, our marine rocker switch have output circuit protection, overload protection, reverse polarity protection, and safety to use in automobile, trailer, off-road vehicles, ships, and yachts.
- OEM &ODM at lower MOQ and fair price.
- Replace any other brand rocker switch
Switch Accessories
- Mounting Panel: Middle, End, Single
- Actuator Removal Tool
- 8Pin or 10Pin Connectors
We produce a wide variety of switches for your boat and caravan. From the popular Contura series rocker switch to the push button switches, you can find it all in our store
